ES-185F GPS Master Clock


GPS Master Clock

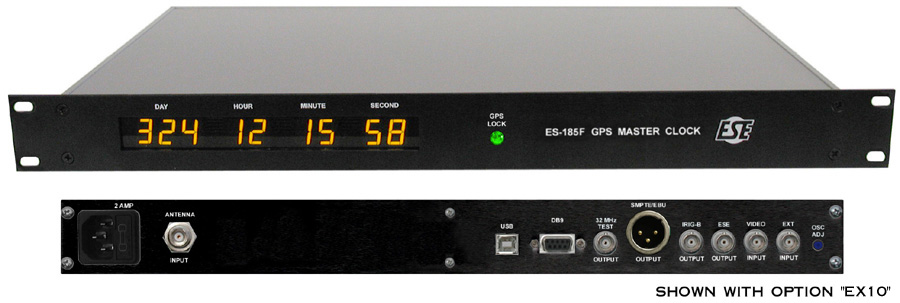

Click Image to Enlarge

The ES-185F is a GPS Master Clock/Time Code Generator. The unit receives accurate time and date information from Global Positioning System satellites and displays nine digits of time (Day of Year, Hour, Minute & Second). Simultaneously, the ES-185F generates several types of time code including SMPTE/EBU LTC, ESE-TC90/TC89 (selectable), ASCII (RS-232C & USB), IRIG-B and a 1PPS signal. These outputs allow the ES-185F to easily interface with new or existing computers, automation and clock systems. A 12-channel receiver is employed that is capable of tracking up to twelve satellites simultaneously, although reception of only one is required for time data to be output. ESE's ES-185F offers an accuracy of better than 10nS, and is entirely self-setting. The unit provides an internal Coin Cell for backing up the GPS receiver time.

Software available for the ES-185F permits users to continuously update a computer's Windows' clock to the time available on the USB port. Other features allow the user to select SMPTE mode (DF, NDF, EBU & Real Time), offset the Time Zone displayed and output by the ES-185F and advance or delay the time output for various synchronizing purposes.

  • 12-Channel GPS Receiver
  • SMPTE-LTC/EBU, ESE, IRIG-B, ASCII (RS-232 & USB) Time Code Outputs
  • Universal Power Supply (90-264 VAC)
  • Optional 10 MHz Reference Input - Option "EXT"
  • Optional OCXO Oscillator - Option "OCXO"
  • 1 PPS (Pulse-Per-Second) Output
  • Front Panel Nine Digit .56" Yellow LED Display
  • Indoor/Outdoor Antenna and 16' Cable
  • Automatic Daylight Saving Time Correction
  • Time Zone Offset
  • +/- 10 Second Offset
  • Configuration via RS-232 or USB
  • New PC Control Panel Software available via web download
  • Coin-Cell GPS Time Backup
  • Flash memory backup of user settings
  • GPS Lock LED Indicator & TTL Output
  • 1.75" Rackmount Enclosure
