ES-160F Master Clock

ES-160F

Stand-Alone Quartz Controlled Master Clock

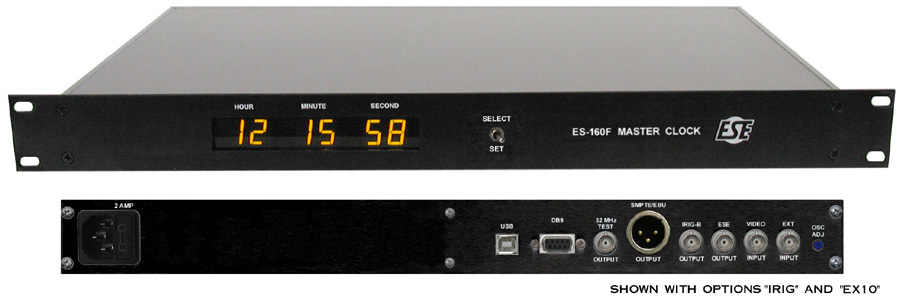

Click Image to Enlarge

The ES-160F is a crystal-based Master Clock / Time Code Generator. The unit employs a temperature compensated crystal oscillator (TCXO) which provides the ES-160F with an accuracy of one second per month. Six .56" yellow LED's display the real time or date while the unit simultaneously generates several types of time code. The unit provides a Coin Cell for time backup.

  • SMPTE-LTC/EBU, ESE, ASCII (RS-232 & USB) Time Code Outputs
  • Universal Power Supply (90-264 VAC)
  • Optional 10 MHz Reference Input - Option "EXT"
  • Optional OCXO Oscillator - Option "OCXO"
  • Optional IRIG-B Output - Option "IRIG"
  • 1 PPS (pulse-per-second) output
  • 12 or 24 hour display
  • Automatic Daylight Saving Time correction
  • Coin-Cell Time Backup
  • External Time Sync input
  • Video input for SMPTE/EBU synchronization
  • Configuration via RS-232 & USB
  • New PC Control Panel Software available via web download
  • NTP Output Port Option (RJ-45, IPv6)
  • 1.75" Rackmount enclosure
