HD-453/SD SDI Time Code Reader

HD-453/SD

SDI Time Code Reader



Click Image to Enlarge

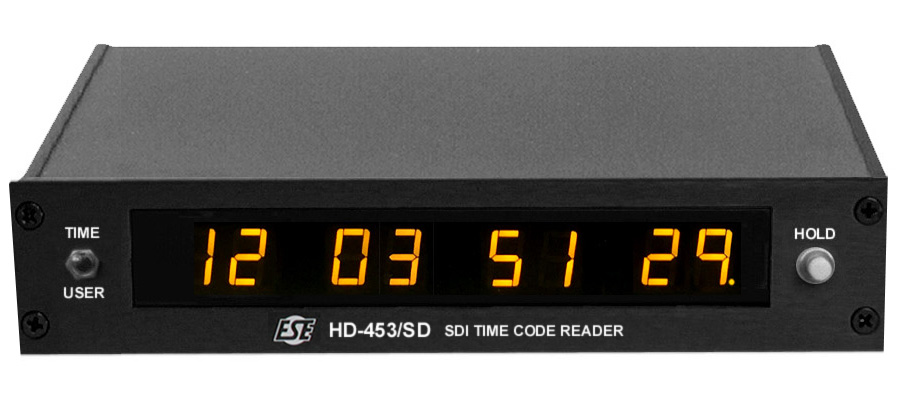

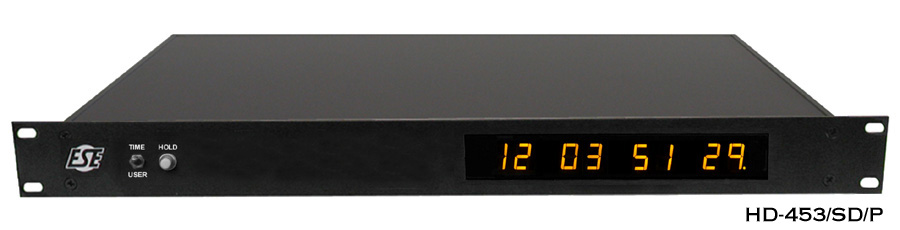

The HD-453/SD is a SDI Time Code Reader. It can accept SD, HD & 3G video formats, via a rear-mounted BNC connector, and then decodes embedded RP-188/SMPTE 12M-2 Time Code to display. The unit features a 0.56" high, 8-digit yellow LED display, and it comes standard in a desktop case (with available Rack Mount option). The HD-453/SD displays Hours, Minutes, Seconds and Frames or may be switched to display User Bit digits using a front-mounted toggle switch.

If the ESE Time Code Output option is ordered on the HD-453/SD, a rear-mounted BNC connector will provide access to the TC89™ output of Hours, Minutes and Seconds. Up to 100 slave units may be driven, up to 4000' away.

  • Reads Time and User Bits
  • .56" Yellow LED Display
  • Universal Power Supply (90-264 VAC)
  • "Hold" Control
  • Accepts All Common HD, SD & 3G SDI Signals
  • Auto Detects Video Format
  • Automatically Locks to Video Input
  • Several Options Available
