RS-232 / ASCII Distribution Amplifiers

ES-249: 1x8 RS-232/ASCII Distribution Amplifier

The ES-249 is designed to accept RS-232C/ASCII and output up to eight identical copies. The unit has a single input and eight outputs that are accessible on rear mounted terminal DB-9 connectors. Find out more at www.ese-web.com/249.htm

ES-250: 1x24 RS-232/ASCII Distribution Amplifier

The ES-250 is an RS-232-C Isolation and Distribution Amplifier. The amplifier circuit allows the incoming signal to be distributed via the 24 outputs. All inputs and outputs are via rear mounted terminal block connectors. Find out more at www.ese-web.com/250.htm

ES-251: 1x24 RS-232/ASCII Distribution Amplifier

The ES-251 is an RS-232-C Isolation and Distribution Amplifier. The amplifier circuit allows the incoming signal to be distributed via the 24 outputs. All inputs and outputs are via rear mounted terminal DB-9 connectors. Find out more at www.ese-web.com/251.htm

Digital Signage Application

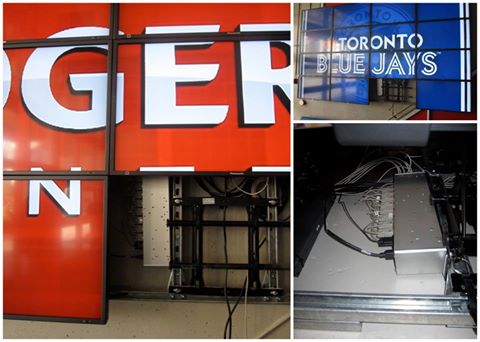

The ES-251 is mounted discreetly behind a 4x4 video wall of flat panel displays. The ES-251 distributes RS-232C signal, so Westbury National Show Systems can send one command through the ES-251 to all the displays (up to 24 outputs) at the same time. An example command is turning On/Off all the displays simultaneously.
