ES-2940ES-2940
Dual 1x4 Video / Audio DA with Black-Burst
Click Image to Enlarge

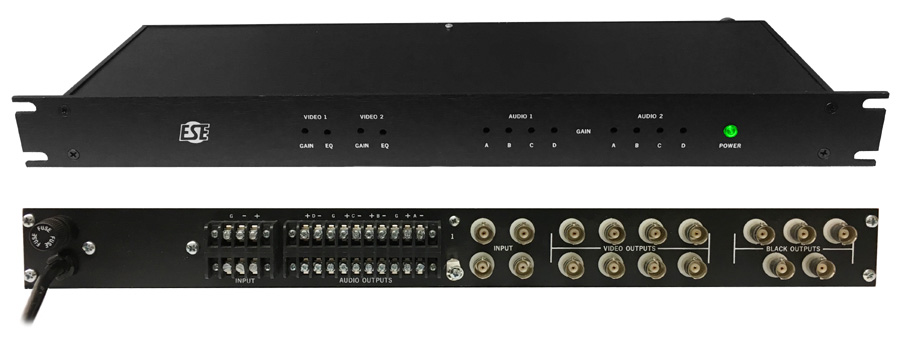

The ES-2940 is a single rack mounted unit which contains two Audio Distribution Amplifiers, two Video Distribution Amplifiers and a five output RS-170A Black Burst Sync Generator (BBSG). The unit is designed to meet the requirements of systems which must interface with, distribute and synchronize video and audio signals.
- Two 1x4 Video Distribution Amplifiers with looping inputs
- Two 1x4 Audio Distribution Amplifiers
- A five-output RS-170A Video Black-Burst Generator
- BNC connectors for Video
- Terminal blocks for Audio
- Isolated outputs
- Video Gain & High-frequency Equalization controls
- Audio Gain controls (one for each output)
- Single Rack unit
- 220-240 VAC (110-120 VAC is standard) & UL options available
