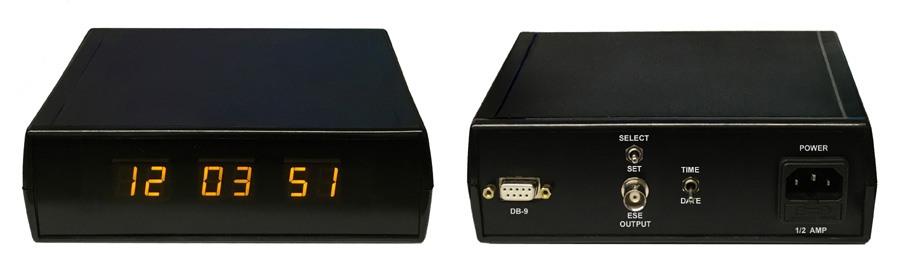

ES-192UE / ES-194UE Master Clock

ES-192UE / ES-194UE

Master Clock


Click Image to Enlarge

The ES-192UE (12 hour)/ES-194UE (24 hour) is a low-cost Master Clock for applications not requiring GPS or temperature controlled stability. Like the LX-192UE/194UE, the ES-192UE/194UE uses the AC line-frequency as a time reference or, optionally, a quartz crystal timebase may be specified. Time & Date data are output to Slave displays via the TC90™ Time Code output. The unit automatically compensates for Daylight Saving Time but this may be defeated by means of an internal solder jumper. The 12 or 24 hour format may be similarly changed.

  • .56" Yellow LED Display
  • 12 hour (ES-192UE) or 24 hour (ES-194UE) display
  • Date Function
  • ESE Time Code output (TC90™)
  • 1 PPS (pulse-per-second) output
  • External Time Sync input (corrects error up to 1/2 second)
  • Optional relay-contact closure output on the Hour or Hour & Half Hour
  • Optional 1.75" Rackmount enclosure (option "P")
  • Optional 4-hour Battery Backup (option "P" only)
  • 220-240 VAC (110-120 VAC is standard) & UL options available
