DV-229 HD/SD SDI Pattern Generator


HD/SD SDI Pattern Generator

Click Image to Enlarge

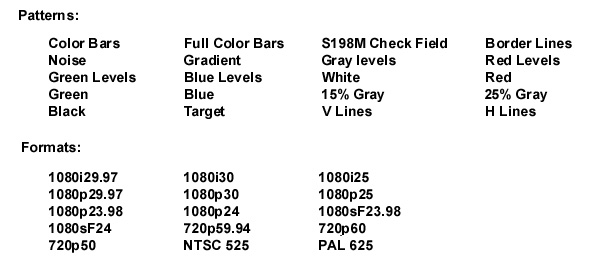

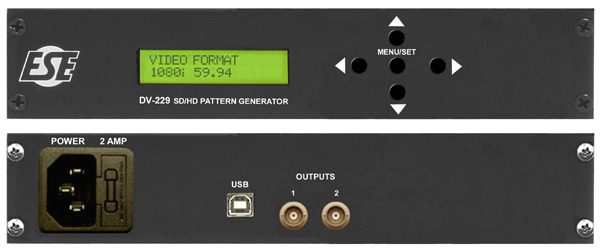

The DV-229 is an HD/SD SDI Pattern Generator. The DV-229 offers two identical rear-mounted BNC outputs. A front panel LCD and pushbuttons allow for quick and easy setup. Alternatively, a software control panel and USB port may be used to configure the unit. Color bars as well as many other patterns are supplied. RP-188 and Closed Caption insertion, Embedded Audio Tones and onscreen Time Code/User Text insertion are also supported.

User Report on DV-229/DV-230

  • Audio: Embeds 500Hz or 1000Hz audio tone. Embeds audio tones on 1-8 channels of audio (Groups 1 and 2). Embeds audio tones @ 48000 Kbps
  • Motion: Square, Inverse Square, Full Motion
  • Time Code: RP188 Insertion, DVITC insertion (SD Formats Only), Drop Frame and Non Drop Frame Modes, Time Burn Window with settable position
  • Text Burn: Insertion of 32 characters of text, Front panel selection of Text and Position
  • SMPTE 352M Insertion
  • CEA-608 Closed Caption Insertion
  • Settings can be stored in non-volatile memory
  • User control panel software via USB connector
  • Field Upgradable via USB connector
