DV-222
Dual 1 x 4 3G/HD/SD SDI Reclocking Distribution Amplifier

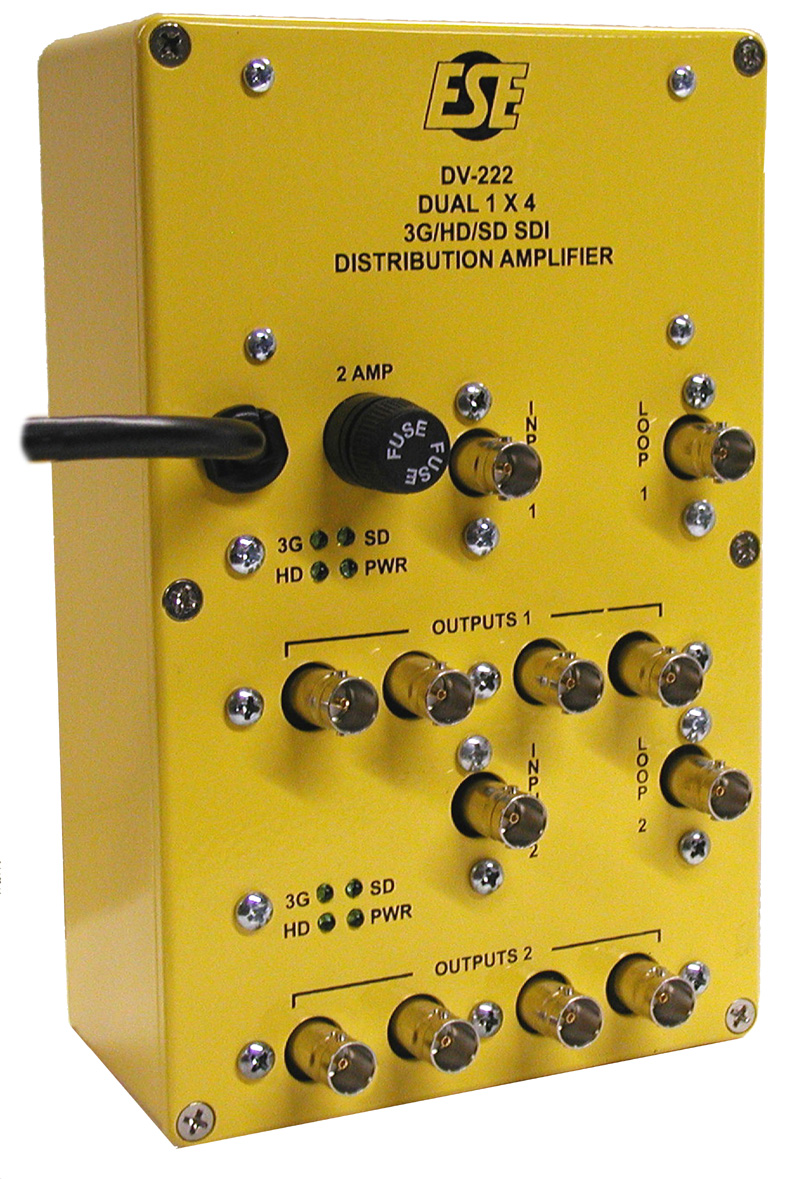

Click Image to Enlarge
The DV-222 is an SDI digital video (3G, HD & SD) Dual 1 x 4 Distribution Amplifier. The unit features high-performance & low-cost and is able to distribute 3Gb/s, 1.5Gb/s & 270Mb/s data rates. The DV-222 automatically detects the data rate and then re-clocks and equalizes the signal. The Distribution Amplifier can equalize 400m @ 270Mb/s, 200m @ 1.5Gb/s and 140m @ 3Gb/s of 1694A coax cable. A non-reclocked loop output is also provided. An external power supply is not required as the DV-222 is completely self-contained requiring only 90-264 VAC, 50/60 Hz to operate. The small diecast enclosure can be easily placed behind an equipment rack.
- Two sets of 4 Reclocked Outputs (BNC)
- 2 Non-Reclocked Loop Outputs (BNC)
- 270Mb/s, 1.5Gb/s, 3Gb/s
- Reclocking & Equalization
- Automatic Input Rate Detection
- Reclocking Bypass Switch (internal)
- DVB-ASI compliant at 270 Mb/s
- 90-264 VAC, 50/60 Hz Power
- DC Option -DV-222/DC
