ES-ANT GPS Antenna

ES-ANT

Active GPS Antenna for Harsh RF / Marine Environments

Click Image to Enlarge

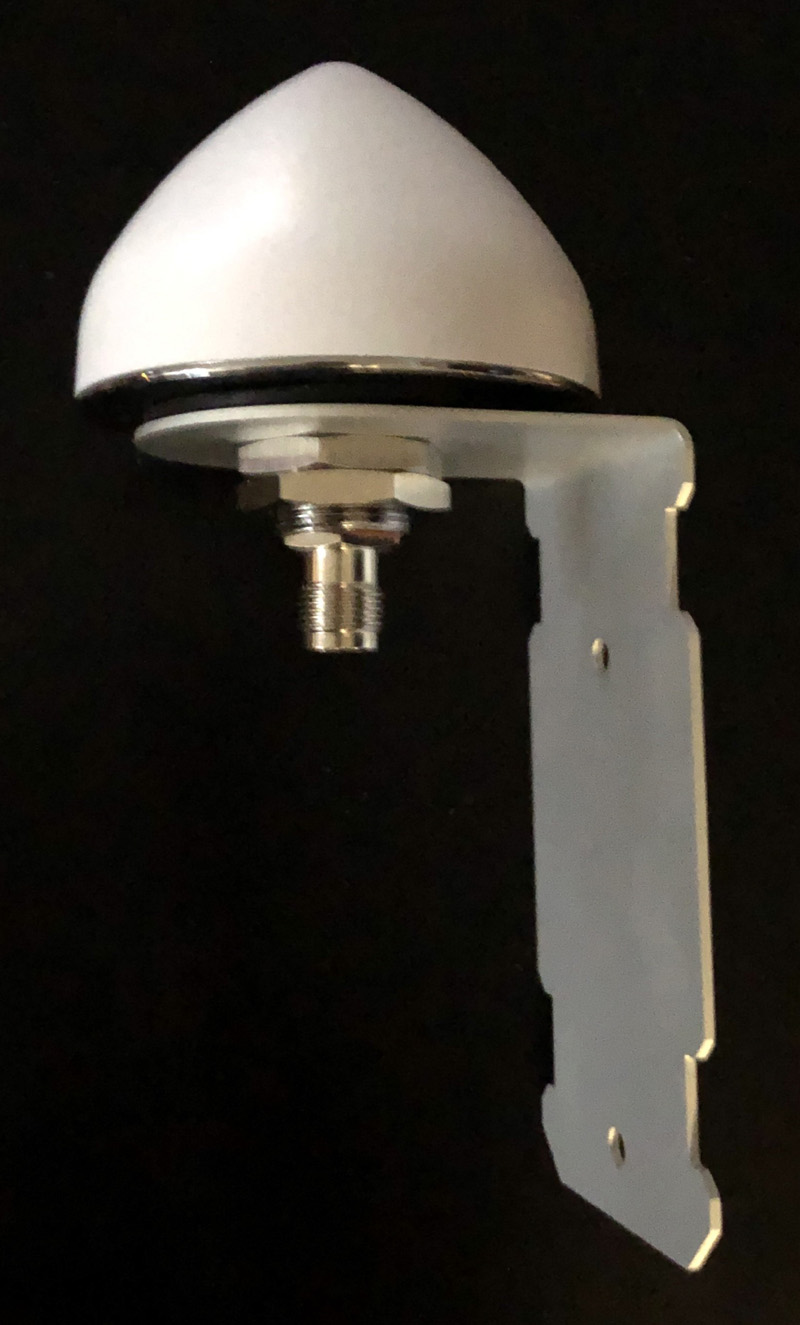

The ES-ANT is an Indoor/Outdoor Active GPS Antenna that can replace the standard GPS antenna in harsh RF environments.
  • 30dB Active Antenna
  • Compact polycarbonate radome
  • Water/weatherproof physical construction
  • High strength direct mount
  • 5 Volt operation
  • 27mA typical current consumption
  • 2dB typical noise figure
  • GPS Frequency L1 (1575.42 MHz)
  • 30dB minimum filtering at +/- 50MHz
  • Radome Dimensions: 4.5" mm dia. x 2.9" high
  • 1"-14 marine mount
  • 19' Cable
