ES-466E SMPTE Presettable Up/Down Timer


SMPTE Presettable Up/Down Timer

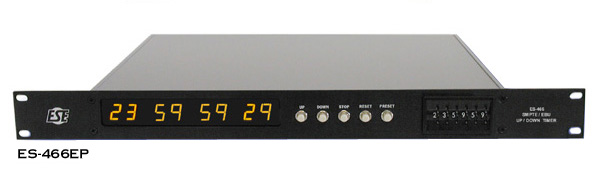

Click Image to Enlarge

The ES-466E is an eight digit, presettable 24 hour SMPTE Up/Down Timer (00:00:00:00 - 23:59:59:29) with five front panel mounted controls (UP, DOWN, STOP, RESET and PRESET) and an eight digit display. All displays are 0.56" amber LED digits. A SMPTE output is provided on the rear panel XLR connector. The "Bit Order Forward" toggle switch on the rear panel allows the unit to mimic decks that always output "forward" bit order code. EBU Time code is optional.

  • SMPTE Time Code output, EBU optional (balanced XLR)
  • Forward/Reverse or Forward-Only Bit Order, selectable
  • .56" Yellow LED Display
  • 24 Hour Up/Down count range (00:00:00:00 - 23:59:59:29)
  • Thumbwheel Preset of Hours, Minutes & Seconds
  • Optional relay-contact closure output at zero (Option Y)
  • Optional Stop at zero (Option Z)
  • Optional 1.75" Rackmount enclosure (Option P)
