ES-302UE 100 Minute Timer


100 Minute Up/Down Timer

Click Image to Enlarge

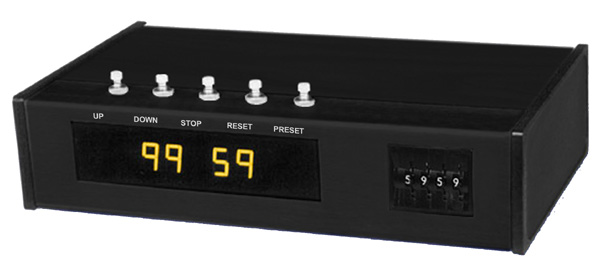

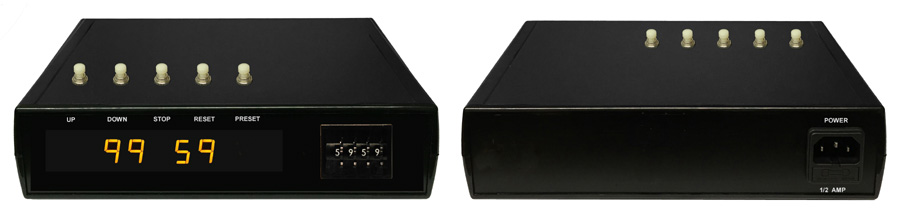

The ES-302UE is a 100 Minute Up/Down Timer. The timer is presettable via the front-mounted thumbwheel switch. Up, Down, Stop, Reset-to-zero, and Preset controls are provided on the top of the case. If the relay contact closure option is ordered, the contacts are accessible on a rear-mounted DB-9 connector.

  • .56" Yellow LED Display
  • 100 Minute Up/Down count range (00:00 - 99:59)
  • Thumbwheel Preset
  • Optional relay-contact closure output at zero
  • Optional Stop at zero
  • Optional Tenths of Seconds display

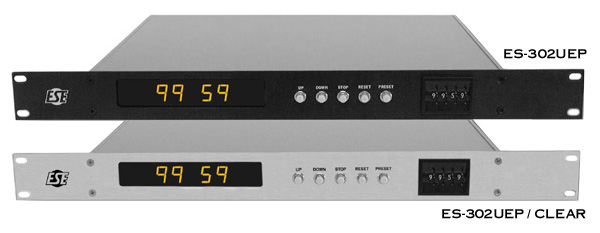

  • Optional 1.75" Rackmount enclosure (option "P")
  • 220-240 VAC (110-120 VAC is standard) & UL options available
