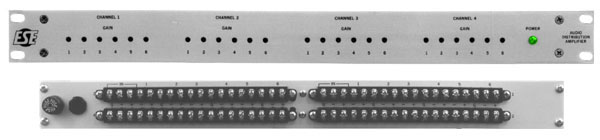

ES-245 Quad 1x6 Audio Distribution Amplifier


Quad 1x6 Audio Distribution Amplifier

Click Image to Enlarge

The ES-245 is an Audio Distribution Amplifier that accepts a balanced or unbalanced audio signal and produces exact copies of that signal. The outputs are isolated and have recessed Gain controls. All inputs and outputs are accessible on terminal blocks for simple “permanent” installations. Or, if option “XLR” is specified, all inputs and outputs are available on XLR connectors for easy disconnect/reconnect.

  • 4 independent isolated amplifiers, each with six isolated outputs
  • Terminal Block connector Input & Output (XLR optional)
  • Variable Gain, adjustable for each output, +18 db maximum
  • Transformerless design
  • May also be used for SMPTE & IRIG Time Codes
  • 220-240 VAC (110-120 VAC is standard) & UL options available
