ES-233 Video Fader


Video Fader

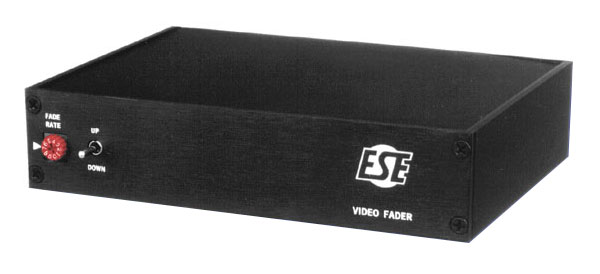

Click Image to Enlarge

The ES-233 is an automatic video fade-to-black system. The unit uses a digital attenuator which provides an extremely linear, repeatable fade rate. Fade rates are adjustable between 1 frame and 150 frames via a front panel mounted, ten position selector switch or with Option “D” . The video-fade operation is controlled by either the front panel “UP/DOWN” switch or via the remote control inputs of the rear mounted connector.

  • NTSC Composite Video fade-to-black system
  • Digitally controlled attenuator provides extremely linear fade
  • Fade rates adjustable in 10 steps from 1 to 150 frames via front switch
  • Remote control optional
  • Optional Single or Dual (side by side) Rackmount
  • 220V & UL options available
