ES-226 Time Code Converter


Time Code Converter

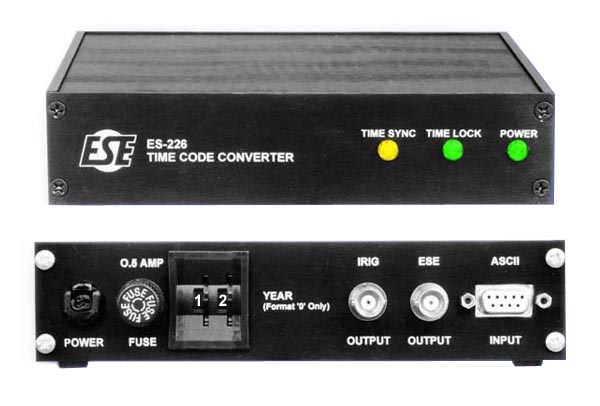

Click Image to Enlarge

The purpose of the ES-226 is to provide a Master Clock or a computer's clock (or any other source of ASCII, format "O", "1", "8" or NMEA-0183 GPRMC/GPZDA) the ability to supply time information to other pieces of equipment. The IRIG-B or IRIG-E time code output can interface with most Voice Recorders used by a 9-1-1 PSAP (Public Safety Answering Point). The ESE Time Code output is capable of driving up to 100 Slave Clocks (analog or digital), Video Inserters or Time Code Comparators at a distance of up to 4000 feet.

  • Accepts ASCII Time Code (RS-232 or RS-485 levels)
  • Formats "0", "1", "8", NMEA-0183 GPRMC/GPZDA supported
  • Outputs IRIG-B or IRIG-E (AM or TTL), plus ESE-TC90 Time Codes
  • Selectable input Baud Rates (9600 standard)
  • Input Time Code "Lock" and "Time Sync" indicators
  • Year Set feature for Format "0" input
  • Optional single rack mount available
  • 220-240 VAC (110-120 VAC is standard) & UL options available
