ES-215P Audio Level Indicators

ES-215P

Audio Level Indicators

Click Image to Enlarge

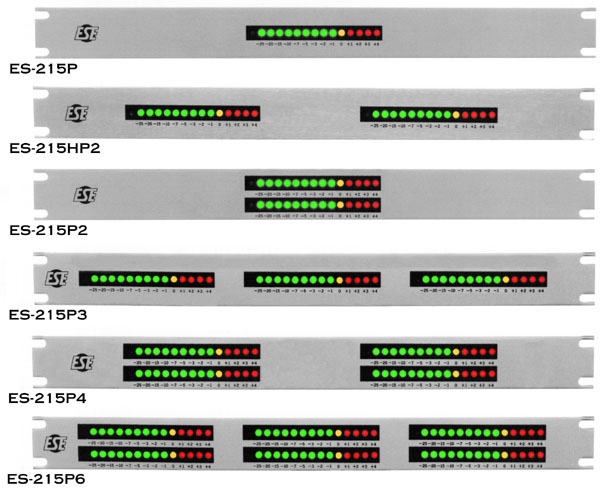

The ES-215P family consists of one or more Audio Level Indicators mounted on a rack-mount panel. The indicators provide a purely digital representation of an audio signal's loudness. The unit features fourteen LED's (nine Green, one Yellow and four Red) that display levels of -25, -20, -15, -10, -7, -5, -3, -2, -1, 0, +1, +2, +3 and +4 db. Units are shipped in Peak mode unless otherwise specified (Fast or Slow Averaging may be specified optionally). Four pigtail leads are provided from each meter for Power and Audio hookup. Each unit measures 19"W x 1.75"H x 3.5"D.

  • 14 LED Levels
  • Peak Detecting
  • Fast or Slow Averaging (VU) optional
  • Balanced or Unbalanced input
  • Transformer isolated
  • Calibration adjustment
  • 15-35 VDC Power Input
