ES-101 GPS Based Time Code Generator / Master Clock

ES-101

GPS Based Time Code Generator / Master Clock

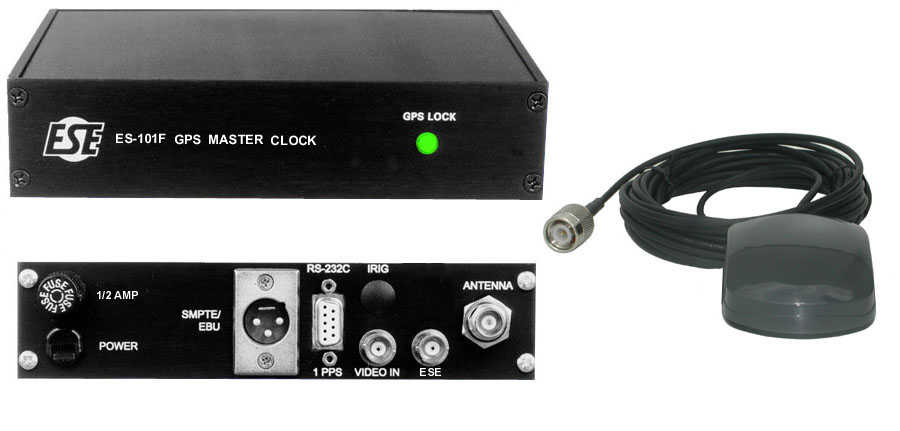

Click Image to Enlarge

The ES-101 is a low-cost yet very accurate GPS Master Clock/Time Code Generator. The unit receives time and date information from Global Positioning System satellites and supplies this data to the user in the form of three (3) different types of time code. ... ASCII (RS-232C), ESE-TC89™ and ESE-TC90™. Two (2) One Pulse Per Second outputs and a GPS "Lock" output are also standard features. A twelve-channel receiver is employed that is capable of tracking up to twelve (12) satellites simultaneously, although reception of only one is required for time data to be output. Several options are available that allow the unit to meet most any requirement asked from a Master Clock or Time Code Generator. Options available include SMPTE, EBU, IRIG-B or IRIG-E time code outputs. Many other options are available and are listed in the Product Options tab below.

  • Optional SMPTE, EBU, IRIG-B or IRIG-E output (SMPTE option shown)
  • ASCII (RS-232C) And ESE time Code Outputs
  • Dual 1 PPS Output (20% and 50% Duty Cycles)
  • Indoor/Outdoor Antenna with 13' Cable
  • Digital,Video & Analog Slave Clocks Available
  • Automatic Daylight Savings Time Correction
  • <40 Nano-Second Accuracy
  • Time Zone Offset
  • GPS "Lock" indicator
  • Loss of GPS Signal Output
  • Legally Traceable to UTC (Coordinated Universal Time)
  • Rugged Desk Top Enclosure
