ES-362U

Features:

• .56" Yellow LED Display
• 100 Minute Up/Down count range (00:00 - 99:59)
• Thumbwheel Preset
• ESE Timer Code™ output
• Remote Control input
• Optional relay-contact closure output at zero
• Optional Stop at zero
• Optional Tenths of Seconds display

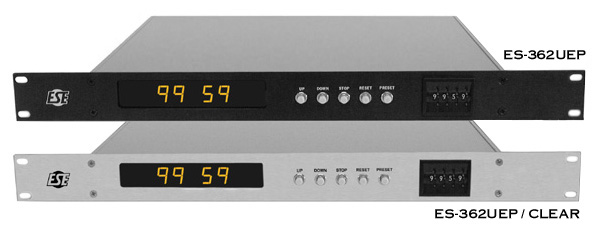

• Optional 1.75" Rackmount enclosure (option "P")
• 220-240 VAC (110-120 VAC is standard) & UL options available
• Various Options available

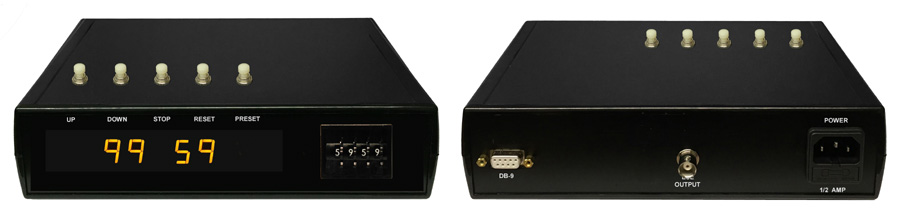

The ES-362U is a 100 Minute Up/Down Timer. The ES-362U is housed in a folded aluminum/plastic case. The timer is presettable via the front-mounted thumbwheel switch. Up, Down, Stop, Reset-to-zero, and Preset controls are provided on the top of the case. A rear-mounted BNC connector provides the ESE Timer Code for driving remote slave displays. Up to 100 slave displays may be driven, using up to 4000 feet of coaxial cable or twisted pair. A rear-mounted DB-9 connector provides access to remotely control the five pushbutton switch functions. If the relay contact closure option is ordered, the contacts are also accessible on this connector.

Slave Clock Displays

Download Brochure Page Operation Manual
