Time Code Distribution Amplifiers
Since the early 80s, ESE’s Audio and Video Distribution Amplifiers have been recognized for their broadcast quality and durability. Using very similar technology, ESE created an entire line of Distribution Amplifiers (DAs) capable of isolating and distributing most any type of Time Code. The basic idea for each model is to provide the ability to distribute time code and compensate for lengthy cable runs while isolating each unit in the Master Clock System. Listed below are units capable of handling any of the IRIG time codes, ESE TC 76/TC 89/TC 90, SMPTE LTC, EBU or ASCII time codes.

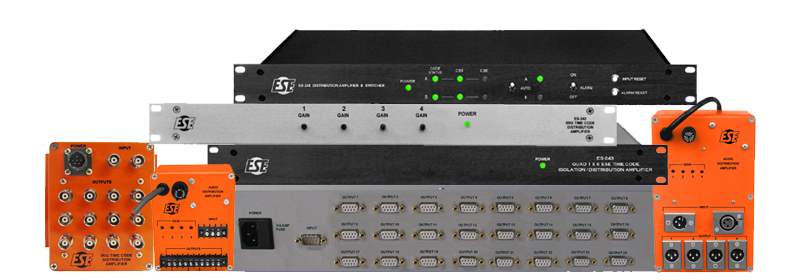

Time Code Distribution Amplifiers:
- ES-217/BNC 1x4 SMPTE-LTC/IRIG DA / Independent Gain Controls
- ES-246/BNC Quad 1x6 SMPTE-LTC DA / Bussed (non-isolated) outputs
- ES-217 1x4 SMPTE / EBU / IRIG DA / Independent Gain Controls
- ES-218 1x4 SMPTE / EBU / IRIG DA
- ES-242 Quad 1 x 6 IRIG Time Code DA
- ES-242U 2x12 Time Code / Frequency DA / Switcher
- ES-243 Quad 1x6 ESE Time Code™ DA
- ES-245 Quad 1x6 SMPTE DA / Independent Gain Controls
- ES-246 Quad 1x6 SMPTE DA / Bussed (non-isolated) outputs
- ES-248 2x12 CS5/CS6 Distribution Amplifier/Switcher
- ES-249 1x8 RS-232 ASCII DA / DB-9 connections
- ES-250 1x24 RS-232 ASCII DA / Terminal Block connections
- ES-251 1x24 RS-232 ASCII DA / DB-9 connections
- ES-262 Airborne 1x12 IRIG-B Distribution Amplifier
- ES-282 Portable 1x12 IRIG-B Distribution Amplifier
Related Products:
Master Clocks
Remote Display
ESE also offers Audio DAs (which can be used to distribute SMPTE LTC Time Code), Digital Video, Analog Video, Combination Audio/Video and Frequency Distribution Amplifiers.
Audio Distribution Amplifiers:
- ES-217 1x4 Audio DA / Independent Gain Controls
- PC-217 PC card 1x4 Audio DA
- ES-218 1x4 Audio DA
- ES-245 Quad 1x6 Audio DA / Independent Gain Controls
- ES-246 Quad 1x6 Audio DA / Bussed (non-isolated) outputs
Digital Video Distribution Amplifiers:
- DV-201 1 X 4 3G/HD/SD SDI Distribution Amplifier
- DV-207 1 X 4 3G/HD/SD SDI Distribution Amplifier
- DV-207/DC DC Powered 1 X 4 3G/HD/SD SDI Distribution Amplifier
- DV-208 1 X 12 3G/HD/SD SDI Distribution Amplifier
- DV-208/DC DC Powered 1 X 12 3G/HD/SD SDI Distribution Amplifier
- DV-212 1 X 12 3G/HD/SD SDI Distribution Amplifier
- DV-222 Dual 1 X 4 3G/HD/SD SDI Distribution Amplifier - NEW
- DV-222/DC DC Powered Dual 1 X 4 3G/HD/SD SDI Distribution Amplifier - NEW
- DV-228 1 X 8 3G/HD/SD SDI Distribution Amplifier - NEW
- DV-228/DC DC Powered 1 X 8 3G/HD/SD SDI Distribution Amplifier - NEW
- DV-242 Quad 1 X 2 3G/HD/SD SDI Distribution Amplifier
- DV-242/Loop Quad 1 X 2 3G/HD/SD SDI Distribution Amplifier with Loop Output
Analog Video Distribution Amplifiers:
- ES-201 1x4 Video DA / Independent Gain Controls
- ES-207A 1x4 Video DA
- ES-208 1x12 Video DA
- ES-227 1x4 S-VHS (Y/C) Video DA
- ES-237 1x4 High-Resolution Video DA
- ES-247E Quad 1x6 Video DA,
- PC-207A PC card 1x4 Video DA
- PC-237 PC card 1x4 High-Resolution Video DA
Combination Video/Audio Distribution Amplifiers:
- ES-209A 1x12 Video / Stereo Audio DA
- ES-224 1x24 Video / Stereo Audio DA
- ES-2940 Dual 1x4 Video / Audio DA with Black-Burst
Frequency Distribution Amplifier:
- ES-210 Quad 1x6 1/5/10 MHz DA
