ES-996U

Features:

• Wall Mount Display
• Reads SMPTE/EBU, ASCII & ESE Time Code™
• Automatic Code Detection
• Six 2.3" Red LED Displays
• Viewing Distance 70'
• Switchable Between 12 & 24 Hour Format Display
• Switchable to Date display
• Optional Time Zone Offset
• Rack-mount option
• NTP Option Available
• UL & 220-240 VAC options available (110-120 VAC is standard)
• Various Options available

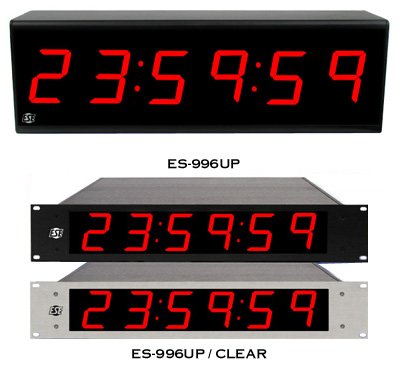

The ES-996U is a Time Code display featuring 2.3" high red LED displays. The unit is housed in a black-textured aluminum wall-mount enclosure (5" H x 15" W x 3.5" D). The unit accepts, via the rear-mounted terminal block (BNC connector on rack-panel units), either ESE Time Code™ (TC76™, TC89™, or TC90™) or SMPTE/EBU Time Code (Time of Day only). RS-232C ASCII Time Code (format "0", "1" or "A" at 9600 baud) may be input via the rear-mounted 9-pin connector. The ES-996U will automatically determine which code is being received. A rear-mounted DIP switch is used to configure the display for 12 or 24 Hour format, or to display the Date instead of time-of-day (if incoming time code contains Date information, such as ESE TC90, date-encoded SMPTE/EBU or ASCII formats "1" or "A"). If the Time Zone option is ordered, a rear-accessible DIP switch is installed for this function. If receiving ESE Time Code™ from a timer, the unit will display Minutes, Seconds and Tenths of Seconds (if the timer has the Tenths option).

Download Standard Brochure Page

Download NTP Brochure Page Operation Manual
