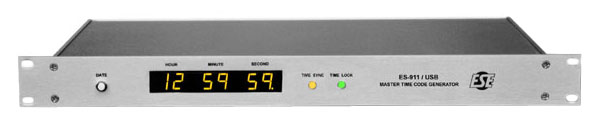

ES-911/USB & ES-911/Serial

Features:

• Generates Time Codes from Network Time
• USB or RS-232 Serial Interface
• IRIG-B & IRIG-E outputs
• RS-232C outputs (Broadcast & Query)
• RS-485 Broadcast output
• ESE Time Code output (TC90)
• 1 PPS output
• Loss of Power & Loss of Time Sync relay outputs
• IRIG Codes are switchable between Modulated and TTL
• Automatic Daylight Savings Time correction (may be disabled via internal switch)
• Time Zone offset
• Internal 60 minute battery back-up
• "Time Sync" & "Time Lock" indicators
• Optional 6-Digit, .56" LED display
• Rugged Rack Mount enclosure
• UL Approved Power Supply
• Simple operation & installation
• Digital, Video & Analog slave clocks available
• Various Options available

The ES-911/USB and ES-911/Serial are ESE Master Clocks that obtain Date and Time information from a PC's serial port or its "Universal Serial Bus" port. The units are specifically designed to provide all of the time codes as described in the NENA (National Emergency Number Association) Standard NENA-04-002. These units easily interface to and allow synchronization of equipment such as CAD, ANI/ALI Controllers, Voice Recorders,and Radio Consoles. Both products can also synchronize other computers and digital/analog clock systems.

Using these units in conjunction with a network that is synchronized from the Global Positioning System (using the ES-911/GPS) allows highly accurate time to be distributed to all equipment within reach of a networked PC and a ES-911/USB or ES-911/Serial.
