ES-453U & ES-456

ES-453U Features:

• Reads SMPTE & EBU Time Codes
• Reads Time and User Bits
• .56" yellow LED display
• Bi-Directional reading, 1/30 to 3x play-speed
• Error Bypass & Error Indicator
• Drop-Frame mode indicator
• "Hold" control
• Various Options available

ES-456 Features:

• Reads SMPTE Time Code (EBU is factory option)
• Reads Time and User Bits
• .56" yellow LED display
• Bi-Directional reading, 1/30 to 20x play-speed
• Error Bypass
• Drop-Frame mode indicator
• "Hold" control
• Various Options available

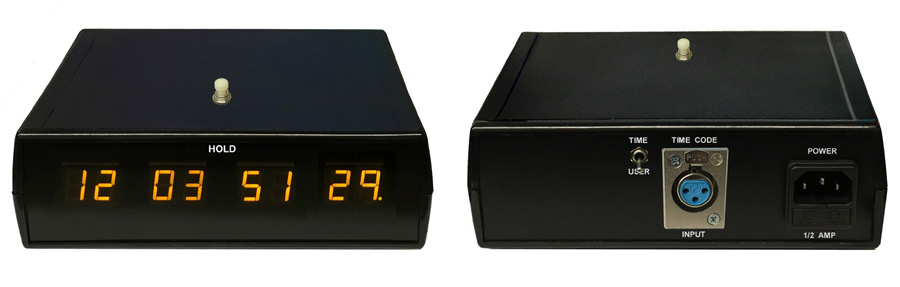

The ES-453U & ES-456 are microprocessor-based SMPTE Time Code displays. Both units read in both forward and reverse direction. The ES-453U reads 1/15 to 3x play-speed while the ES-456 reads 1/30 to 20x play speed. The units feature a .56" high yellow LED display and come standard in a desk-top case (rack-mount chassis optional). Both units display Hours, Minutes, Seconds and Frames, or may be switched to display User Bit digits.

If the ESE Time Code Output option is ordered on the ES-453U, a rear-mounted BNC connector will provide access to the TC89™ output of Hours, Minutes and Seconds. Up to 100 slave units may be driven, up to 4000' away.

If the RS-232 Output option is ordered on the ES-453U, the Hours, Minutes, Seconds, Frames, User Bits and Flag bits are output once-per-frame using ESE Format "C". A rear-mounted DB-9 connector is provided.
