ES/LX-271U

Features:

• Reads IRIG (A, B, or E), NASA-36, XR3 or 2137 Time Codes
• 1.0" yellow LED displays
• Error bypass ensures smooth readout when reading recorded code
• Wide range (100 mVPP - 10 VPP) AGC input
• BNC input connector
• 19" rack or Desk-Top enclosure
• DC power option
• Time Zone option
• TC89 ESE timecode or RS-232 output option (ES-271U/9)
• 220-240 VAC (110-120 VAC is standard) & UL options available
• Various Options available

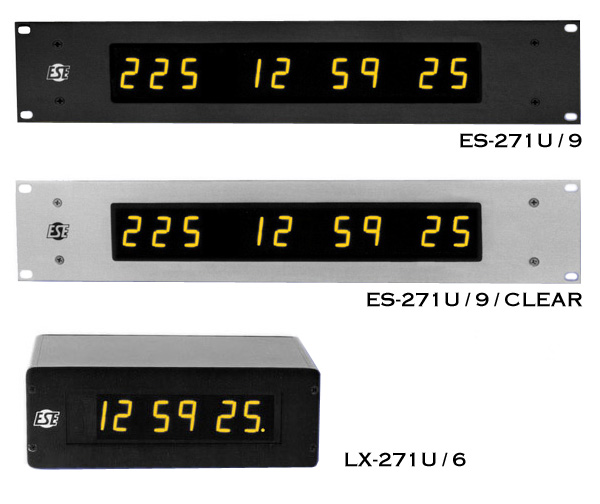

The ES-271U/9 is a remote display unit which will decode and display 9 digits of time (Day of Year, Hours, Minutes and Seconds) and is housed in a double height rack-mount enclosure. The LX-271U/6 displays 6 digits of time (Hours, Minutes and Seconds) and is housed in a rugged, attractive black-powdercoated aluminum desktop enclosure. All units read from a source of IRIG (A, B, or E), NASA-36, XR3 or 2137 time codes.

Download Brochure Page Operation Manual
