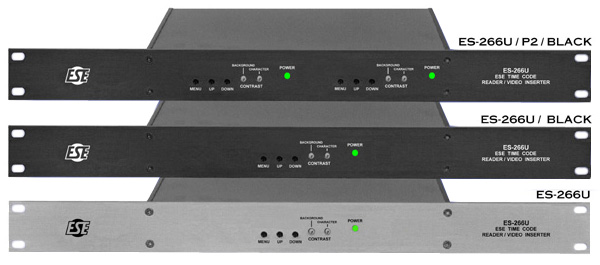

ES-266UTime Code Driven Video Time/Date Generator |
Features:
- Receives ESE Time Code™ (switchable to SMPTE/EBU)
- Inserts Time and Date into Video (NTSC/PAL or optional S-Video)
- Switchable Background Mask, Keyed or Transparent display
- Characters and Background variable from Black to White
- Variable Character Size and Position
- Time Zone offset
- Display Blanking function
- Battery Back-Up of Time & Settings
- Optional RS-232 interface for remote control
- Various Options available
The ES-266U is a Video Time and Date "Inserter" which decodes either ESE or SMPTE Time Code
(selectable via an internal DIP switch). Six digits of Time (Hr, Min, Sec) and six digits of
Date (Month, Day, Year) are then superimposed onto a video signal looped-thru the unit.
On-screen menus allow adjustment of the display Size and Position, Mask Mode (black background
on/off and transparent or solid display), Display Mode (Side-by-Side / Stack / Time Only / Date
Only), 12/24 Hour mode and Time Zone offset (half-hour increments). The Date may be manually
set if receiving time codes which do not provide Date information. The brightness of the Characters
and Background may be individually set via front-panel controls. The display may be turned on/off
via a front-panel control. An optional RS-232 interface & Windows®
Control Panel software may be ordered, which allow remote control of the display modes.
