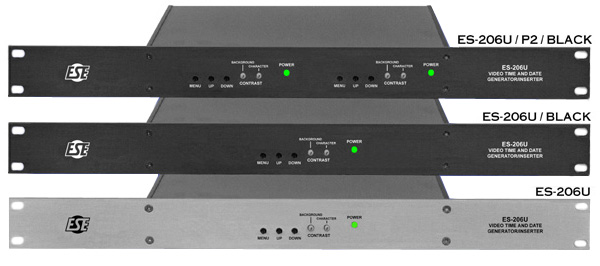

ES-206UVideo Time/Date Inserter |
Features:
- Inserts Time and Date into Video (NTSC/PAL or optional S-Video)
- Switchable Background Mask, Keyed or Transparent display
- Characters and Background variable from Black to White
- Variable Character Size and Position
- Automatic Leap Year & DST Compensation
- Display Blanking function
- Battery Back-Up of Time & Settings
- Optional RS-232 interface for remote control
- Various Options available
The ES-206U is a Video Time and Date "Inserter" which references an internal stand-alone clock.
The clock is line-frequency referenced although an internal DIP switch allows selection of
a crystal timebase reference instead. Six digits of Time (Hr, Min, Sec) and six digits of Date
(Month, Day, Year) are superimposed onto a video signal looped-thru the unit.
On-screen menus allow time setting, adjustment of the display Size and Position, Mask Mode (black background
on/off and transparent or solid display), Display Mode (Side-by-Side / Stack / Time Only / Date
Only), 12/24 Hour mode and Auto Daylight Saving mode. The brightness of the Characters
and Background may be individually set via front-panel controls. The display may be turned on/off
via a front-panel control. An optional RS-232 interface & Windows®
Control Panel software may be ordered, which allow remote control of the display modes.
