SD-488E SDI Time Code Reader/Generator/Inserter

SD-488E

SD SDI TIME CODE READER/GENERATOR/INSERTER

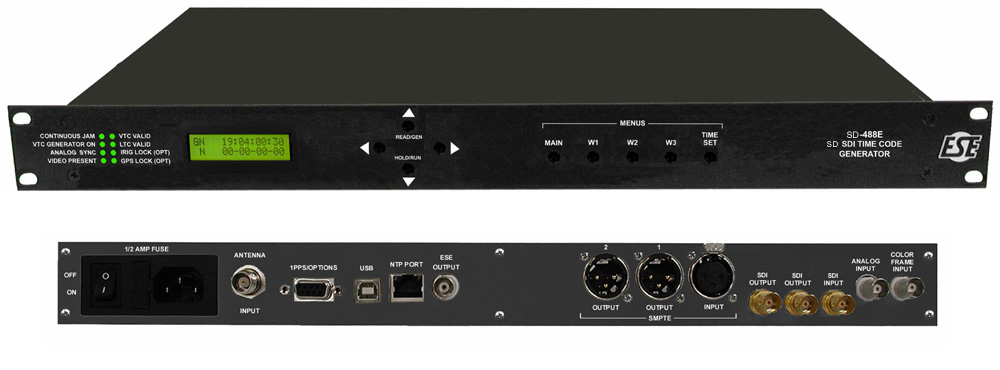

Click Image to Enlarge

The SD-488E is a Time Code Reader, Generator and Inserter for SD (Standard Definition) Serial Digital Interface (SDI) video. Linear Time Code (LTC), Digital Vertical Interval Time Code (D-VITC) and RP-188 Time Code are both read and generated by the SD-488E. The unit accepts 4:2:2 (525 and 625 line) digital video signals. The inserter mode provides the ability to superimpose time and/or user bits onto video with alphanumeric characters. As many as thirty characters of text may also be superimposed onto the video. Flexibility is also provided to the user, allowing for selection of the information to be displayed (time, time and user bits or text) on up to three different windows. The three windows are independent of each other and may be blanked.

The SD-488E is an enhanced version of the SD-488. New features include selectable color fonts, RP-188 Time Code functionality, selectable onscreen date formats and front-panel entry of user text data.

  • Accepts 4:2:2 SDI video(525 & 625 line)
  • Generates/Reads/Inserts LTC/DVITC/RP188 Time Code
  • Dual LTC Output
  • USB Setup Interface
  • User Friendly Control
  • Time Zone Offset
  • Compatible with ES-466E (Up/Down Presettable Timer)
  • LCD Setup/Status Display
  • Seven Selectable Font Colors
  • Selectable Onscreen Date Formats (YMD, DMY, MDY)
  • Front Panel User Text Entry
  • Universal Power Supply (90-264 VAC)
Uses:
  • Transcode RP-188/DVITC to LTC
  • Transcode LTC to RP-188/DVITC
  • Time Code / Time of Day / User Text Window burn
  • Master Time Code Generator
  • GPS Master Clock (w/GPS option)
  • NTP Sourced Master Clock (w/NTP-C option)
  • GPS sourced NTP Server (w/NTP & GPS options)
  • IRIG Sourced NTP Server (w/NTP & IRIG options)
  • IRIG-B Generator (w/IRIG option)
  • Transcode IRIG A/B/G to IRIG-B or SMPTE Codes (w/IRIG option)
  • Transcode SMPTE Codes to IRIG-B (w/IRIG option)
  • Drive standard ESE Remote Displays with Time of Day
