DV-319 HD/SD Sync Generator

DV-319

HD/SD Sync Generator

Click Image to Enlarge

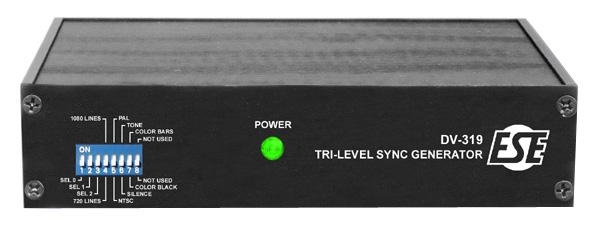

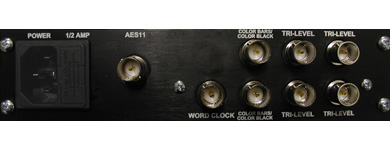

The DV-319 is an HD/SD Sync Generator. Features of the DV-319 include four HD sync outputs. These outputs produce an HD tri-level sync output. Eighteen HD output formats are supported on the DV-319. Also supplied are two SD composite sync outputs that can be switched between color black or color bars. An AES11 output and a Wordclock output are also standard features on the DV-319. The AES11 output may be switched between silent and tone modes. All outputs are provided on rear panel BNC connectors. Front panel dip switches allow the user to configure the various outputs.

  • 4 HD Sync Outputs (BNC)
  • 2 SD Composite Color Black/Color Bar outputs
  • AES11 Output - Tone or Silent
  • Wordclock Output (48 KHz)
  • 18 HD Formats
