DV-230

HD/SD SDI Pattern Generator

Click Image to Enlarge

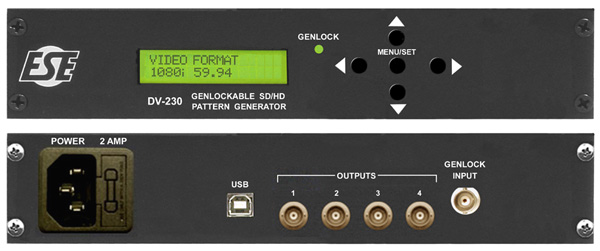

The DV-230 is an HD/SD SDI Pattern Generator. The DV-230 offers four identical rear-mounted BNC outputs, plus a Genlock input which receives Tri-level or Bi-level sync. A front panel LCD and pushbuttons allow for quick and easy setup. Alternatively, a software control panel and USB port may be used to configure the unit. Color bars as well as many other patterns are supplied. RP-188 and Closed Caption insertion, Embedded Audio Tones and onscreen Time Code/User Text insertion are also supported.

User Report on DV-230

Features
Product Options
Downloads
Related Products

Audio: Embeds 500Hz or 1000Hz audio tone. Embeds audio tones on 1-8 channels of audio (Groups 1 and 2). Embeds audio tones @ 48000 Kbps
Motion: Square, Inverse Square, Full Motion
Time Code: RP188 Insertion, DVITC insertion (SD Formats Only), Drop Frame and Non Drop Frame Modes, Time Burn Window with settable position
Text Burn: Insertion of 32 characters of text, Front panel selection of Text and Position
SMPTE 352M Insertion
CEA-608 Closed Caption Insertion
Settings can be stored in non-volatile memory
User control panel software via USB connector
Field Upgradable via USB connector
