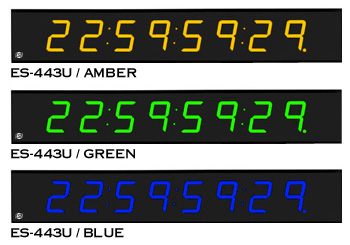

ES-443U

ES-443U Features:

• Reads SMPTE & EBU Time Codes
• Reads Time and User Bits
• 4.0" Red LED display
• Bi-Directional reading, 1/15 to 3x play-speed
• Error Bypass & Error Indicator
• Drop-Frame mode indicator
• "Hold" control
• 7" H x 42" W x 3.5" D Wall Mount
• 220-240 VAC (110-120 VAC is standard) & UL options available
• Various Options available

This eight digit display unit is designed to auto-detect and display SMPTE or EBU time code. It is capable of reading in either direction (forward or reverse) at speeds ranging from 1/15 to 3x play-speed. Setup features allow the unit to display time in either 12 or 24 hour format and to display "User Bits" data. An Error Detection and Correction feature maintains flicker-free operation in the event of poor quality time code. An Error Detection Indicator is also included and the Error feature may be turned off via an internal DIP switch. Grounding the "Hold" input (on the rear-mounted terminal block) allows the display to be "frozen". Another input selects whether "Time" or "User Bits" are displayed.

Operation Manual
