ES-275UIRIG-B Video Character Inserter |
Features:

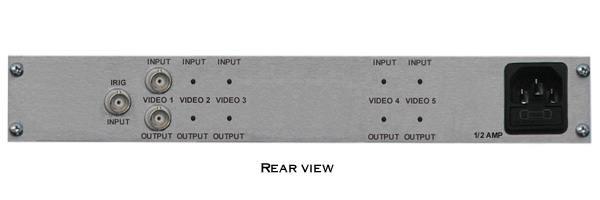

- Wide range (100 mVPP - 10 VPP) AGC input (BNC)
- Inserts Time and Date into Video (NTSC/PAL or optional S-Video)
- Switchable Background Mask, Keyed or Transparent display
- Characters and Background variable from Black to White
- Variable Character Size and Position
- Display Blanking function
- Blankable Milliseconds Display
- Battery Back-Up of Settings
- Optional RS-232 interface for remote control
- Various Options available
The ES-275U is a Video Character Inserter unit which receives an external source of
IRIG-B timecode. 12 digits of time
data (Day of Year, Hours, Minutes, Seconds and Milliseconds) are superimposed onto a video
signal looped-thru the unit. On-screen menus allow time setting, adjustment of the display
Size, Position and Mask Mode (black background on/off and transparent or solid display) and Milliseconds on/off.

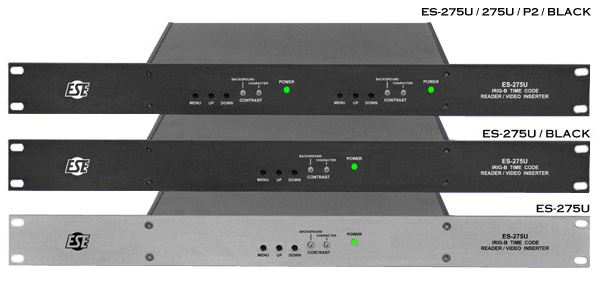

The brightness of the Characters and Background may be individually set via front-panel
controls. The display may be turned on/off via a front-panel control. An optional RS-232
interface & Windows® Control Panel software may be ordered, which allow remote control
of the display modes.
