ES-214Audio Level Indicator |
Features:
- 14 LED Levels
- Peak Detecting
- Fast or Slow Averaging (VU) optional
- Balanced or Unbalanced input
- Transformer isolated
- Calibration adjustment
- 15-35 VDC Power Input

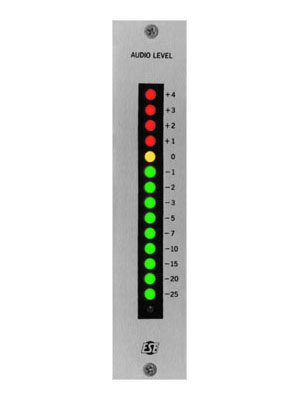

The ES-214 is an in-line audio level indicator which provides a purely digital representation
of an audio signal's loudness. The unit features fourteen LED's (nine Green, one Yellow and
four Red) that display levels of -25, -20, -15, -10, -7, -5, -3, -2, -1, 0, +1, +2, +3 and +4 db.
Units are shipped in Peak mode unless otherwise specified (Fast or Slow Averaging may be
specified optionally). The panel is designed for console mounting. Four pigtail leads are
provided for Power and Audio hookup. The unit measures 7"H x 1.5"W x 3.5"D.
