ES-198

NTP Referenced Time Code Generator

Features:

ESE Time Code output
NTP Ethernet Port (RJ-45)
Front Panel six digit .56" yellow LED display
Time Zone Offset
Automatic Daylight Saving Time Correction
Simple installation & "Hands-off" Operation
1.75" Rackmount enclosure
Various Options available

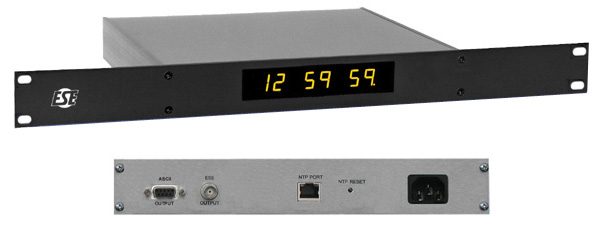

The ES-198 is an NTP referenced Time Code Generator. It displays six digits (Hour, Minute & Second) of time as received via a user selected NTP server. ES-198 then generates TC90 time code. This output allows the ES-198 to easily interface with new or existing computers, automation and clock systems. Optionally available are the RS-232 output "RS" and an NPR time code output "NPR" which may be needed for interfacing to some systems.

Remote Clock Displays
